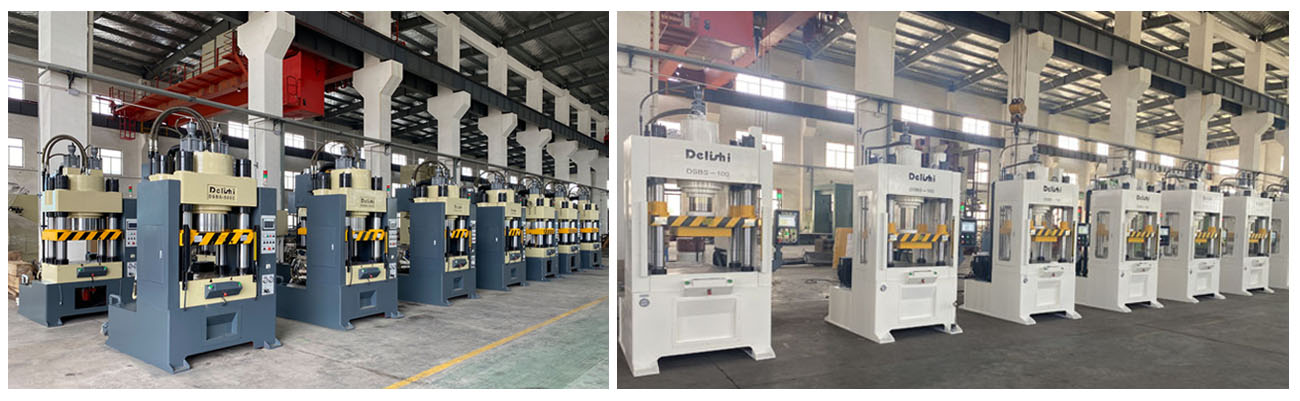

Cold Forging Four Column Hydraulic Press features compact and clean design,Ranging in tonnage from 100 to 2000 tons. The heavy welded and rib-reinforced frame body is extremely rigid and minimum deflection to provide high rigidity and durability. Well-forged and precise-polished heavy-duty cylinder perform highly reliable when machine running at the high load condition. 4-rod guided ram to ensure the accuracy of repetitiveness.

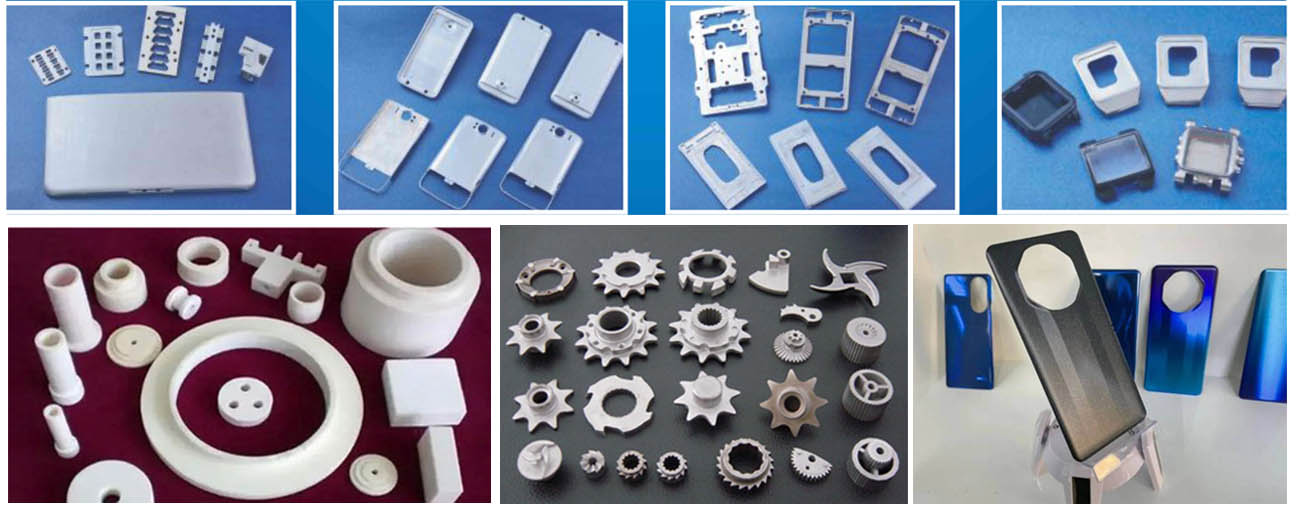

This Cold Forging Four Column Hydraulic Press was mainly applicable to metal materials of cold extrusion,forming、shallow、drawing and blanking purposes Such as:automobile gears,car universal joints,motorcycle spare parts,cell phone casing,LED radiator,aluminum heat sink,watchband,watchcase,hardware tools,etc.
Stamping , forming , shallow drawing , die spotting , molding and blanking etc. of metal and none metal parts.
| Model | Unit | Specifications | |
| DSBS-300 | |||
| Master cylinder capacity | ton | 300 | |
| System pressure | Mpa | 24 | |
| Stroke | mm | 200 | |
| Open height | mm | 500 | |
| Working table height | mm | 900 | |
| Working table size | L-R | mm | 550 |
| F-B | mm | 650 | |
| Master cylinder speed | Down speed | mm/s | 240 |
| Press speed | mm/s | 5-10 | |
| Return speed | mm/s | 220 | |
| Motor power | kw | 11 | |
Remarks: Final specifications are subject to contact or aggreement.
